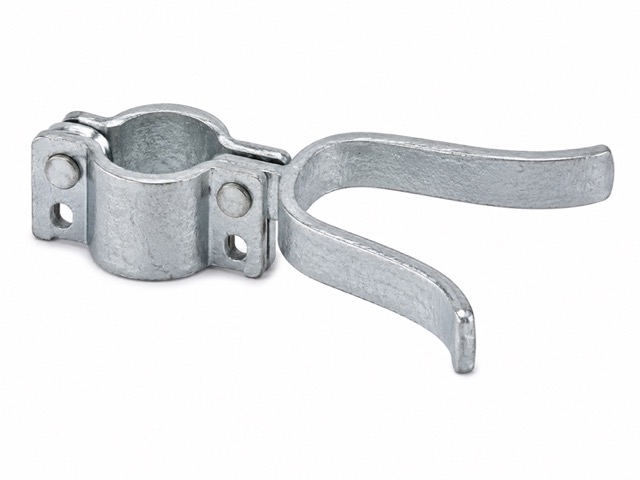

Gate Fork Latch
1 per walk gate / 1 per drive gate.
Chain Link Fence Supply

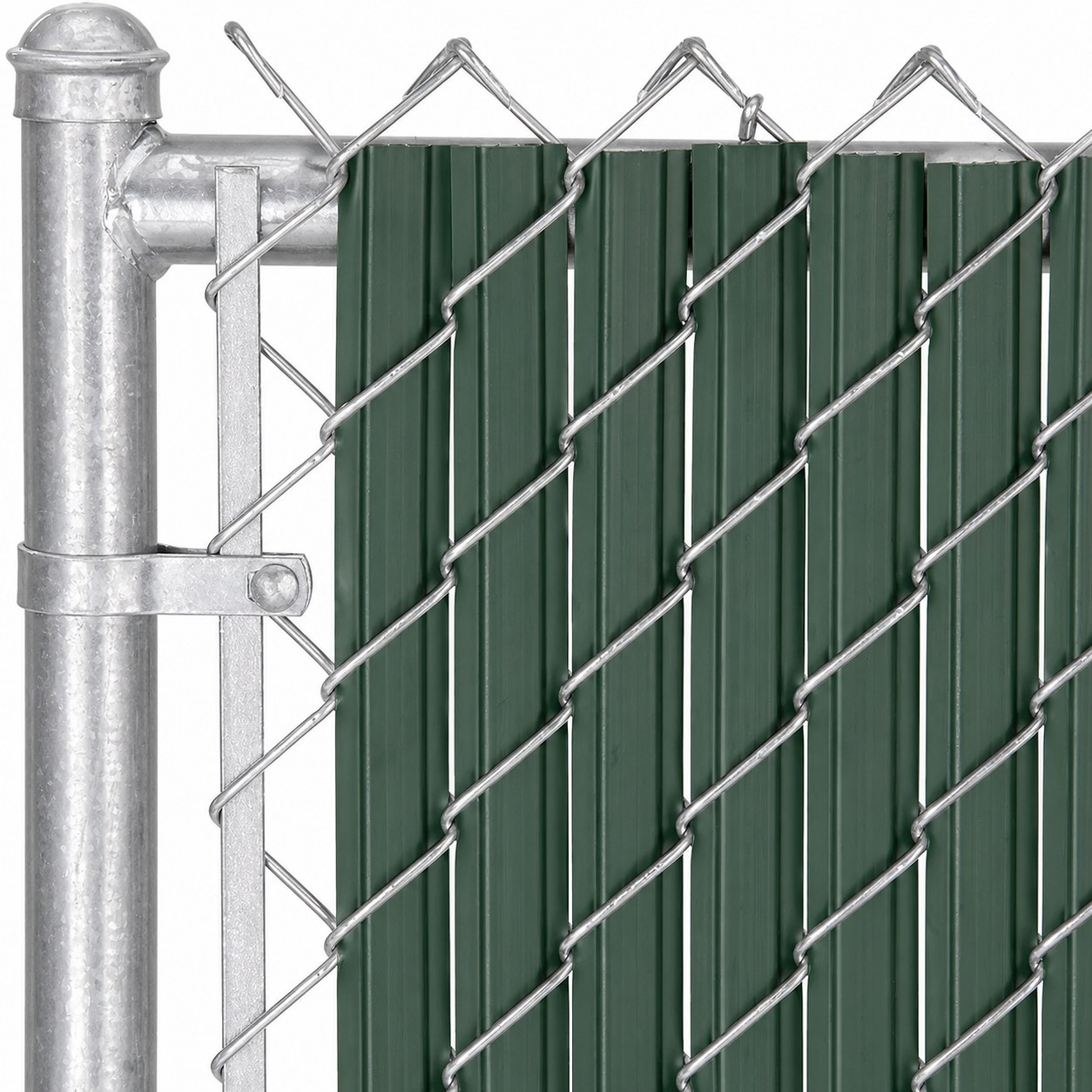

Galvanized and color-coated chain link materials, including mesh fabric, pipe and rails, walk gates, double gates, cantilever gate hardware, fittings, tension wire, wire ties, privacy slats, and utility fence products. All prices include 15% contractor discount.
Need commercial chain link fence materials?
Use the commercial chain link page for mesh by opening, schedule 40 pipe, commercial gates, cantilever gate hardware, privacy slats, and contractor-focused pricing tables.
View Commercial Chain LinkChain Link Hardware
Pricing effective April 2025

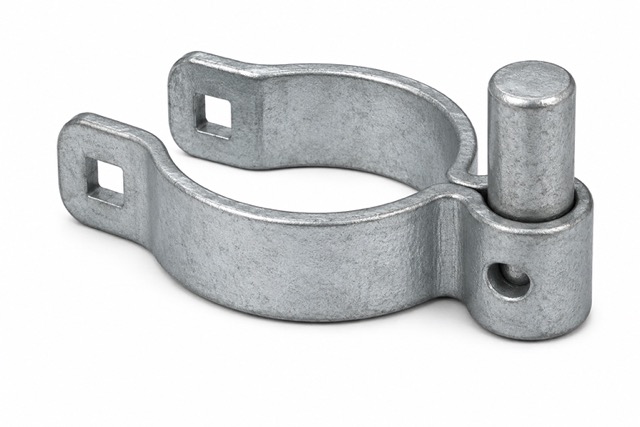

Post Hinge
2 per walk gate / 4 per drive gate.

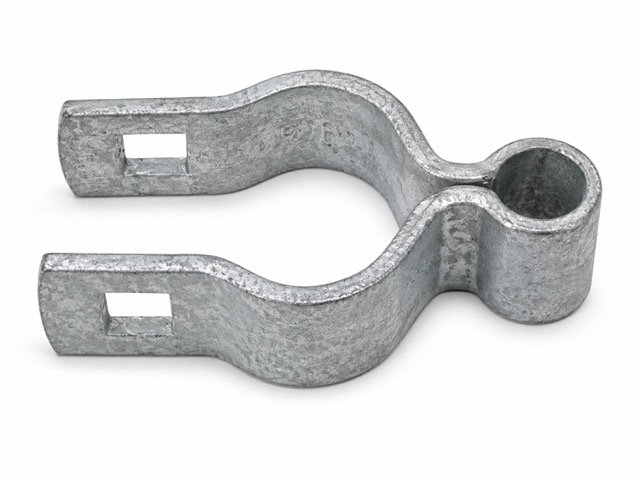

Gate Frame Hinge
2 per walk gate / 4 per drive gate.

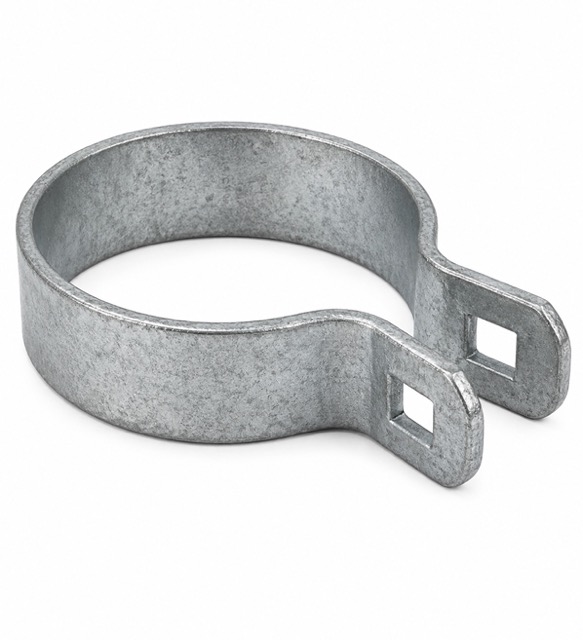

Rail End Band
1 per tension bar.
| Rail End Band, Black, 2" | CL-HDW-3FEAB5 | $4.25 |
| Rail End Band, Black, 3" | CL-HDW-CC2A20 | $4.29 |
| Rail End Band, Galvanized, 2-1/2" | CL-HDW-5F0C9F | $4.29 |

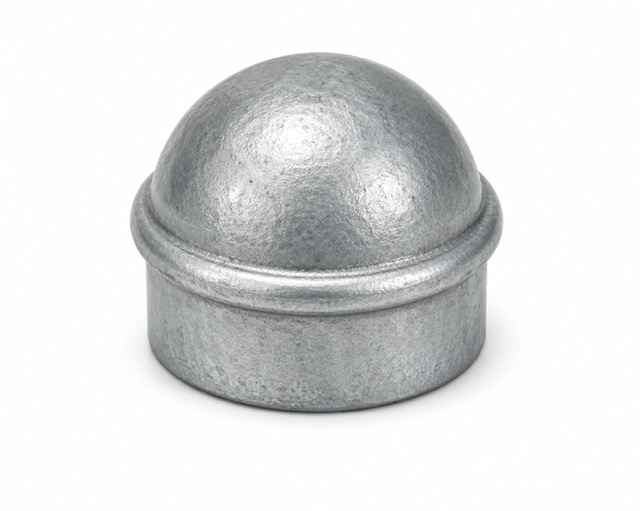

Terminal Post Cap
1 per terminal post.

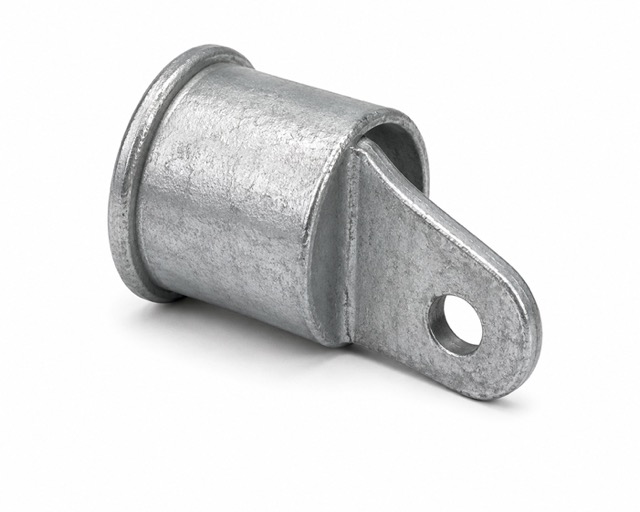

Rail End Cup 1 3/8 in.
1 per tension bar.

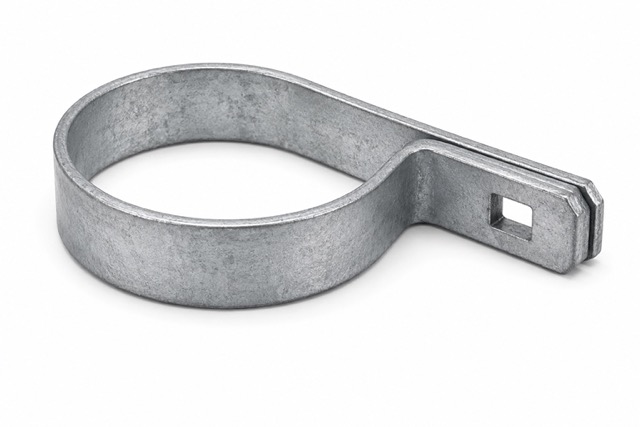

Tension Band
Use 1 less than fence height per tension bar.
| Tension Band 1-5/8" Galvanized | CL-HDW-98DB03 | $2.71 |
| Tension Band Galv 2 1/2" | CL-HDW-AC237B | $3.56 |
| Tension Band, Black, 2" | CL-HDW-70E072 | $3.56 |
| Tension Band, Black, 3" | CL-HDW-17544E | $3.86 |

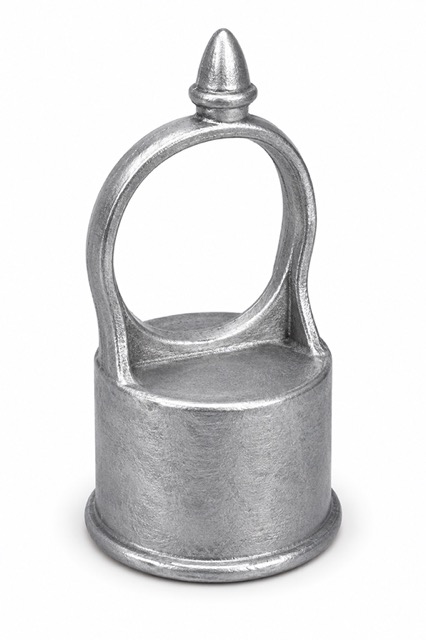

Line Post Cap 1 5/8 in. x 1 3/8 in.
1 per line post.

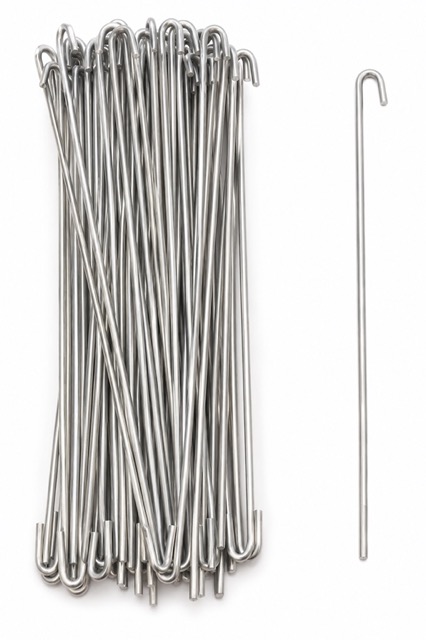

Aluminum Cut Tie Wire
1 per 12 in. of line post / 1 per 24 in. of top rail.

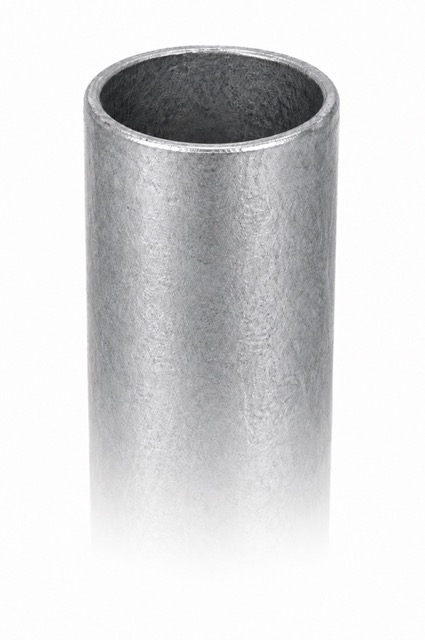

Terminal Post 2 3/8 in. O.D.
1 per corner or end post / 2 per gate.

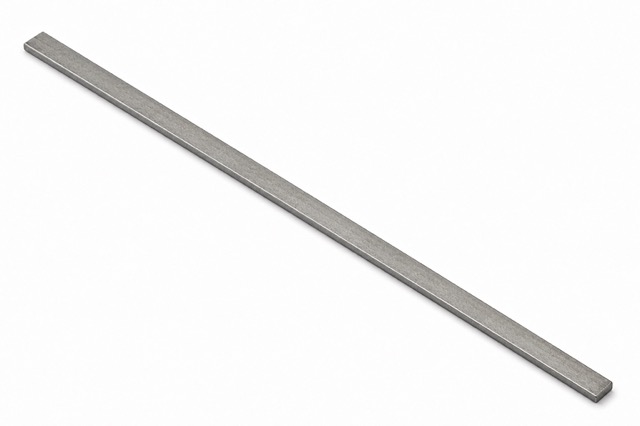

Tension Bar
1 per end or gate post / 2 per corner post.

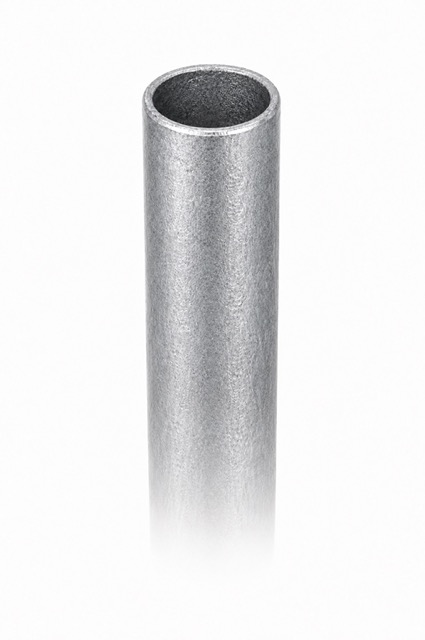

Line Post 1 5/8 in. O.D.
Divide total footage of fence by 10 and round up.

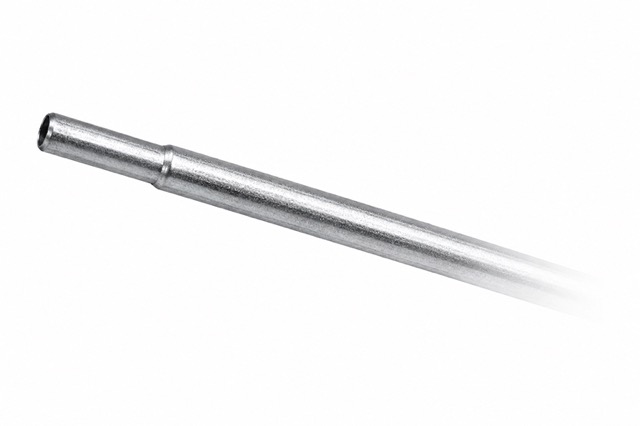

Top Rail 10 ft. 6 in. x 1 3/8 in. O.D. Swedged
Divide total footage of fence by 10 and round up.

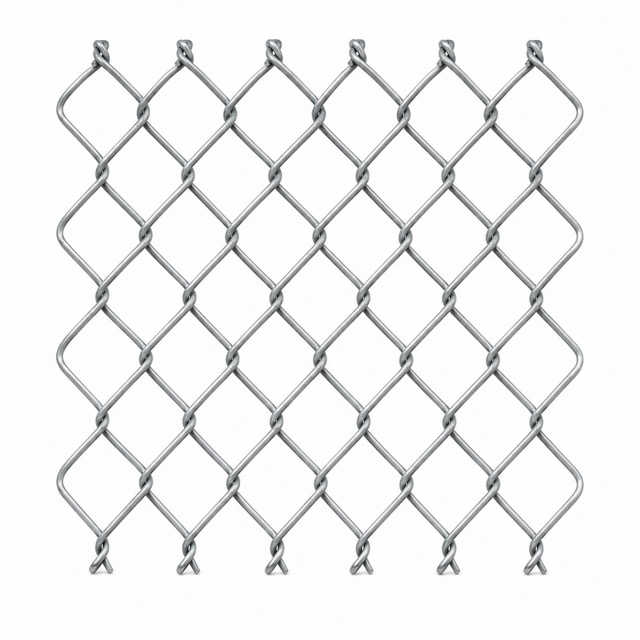

Fabric, 50 ft. Roll
Divide total footage of fence by 50 and round up.

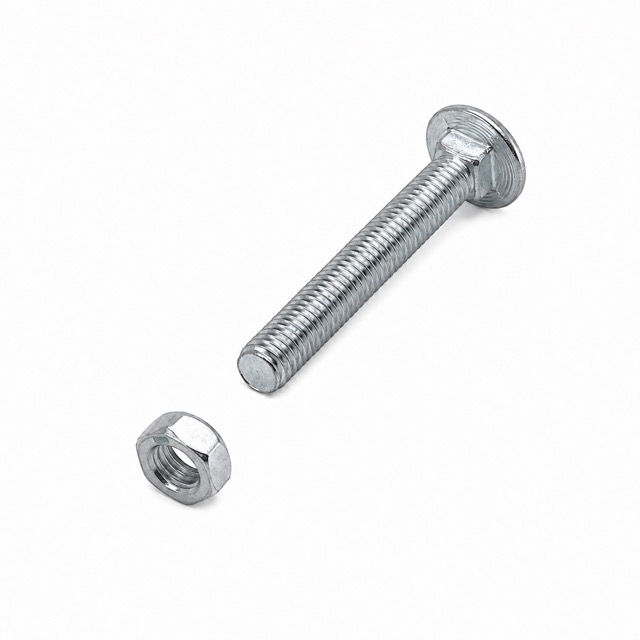

5/16 in. x 1 1/4 in. Carriage Bolt
1 per tension band and rail end band.

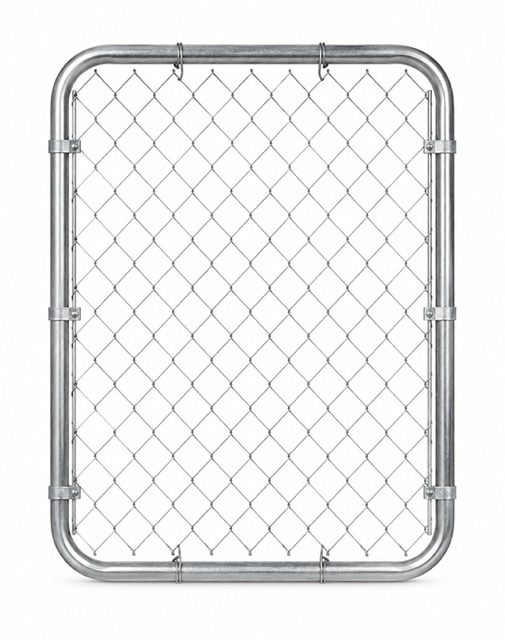

Walk Gate
See items 1, 2, and 3 above for gate fittings requirements.

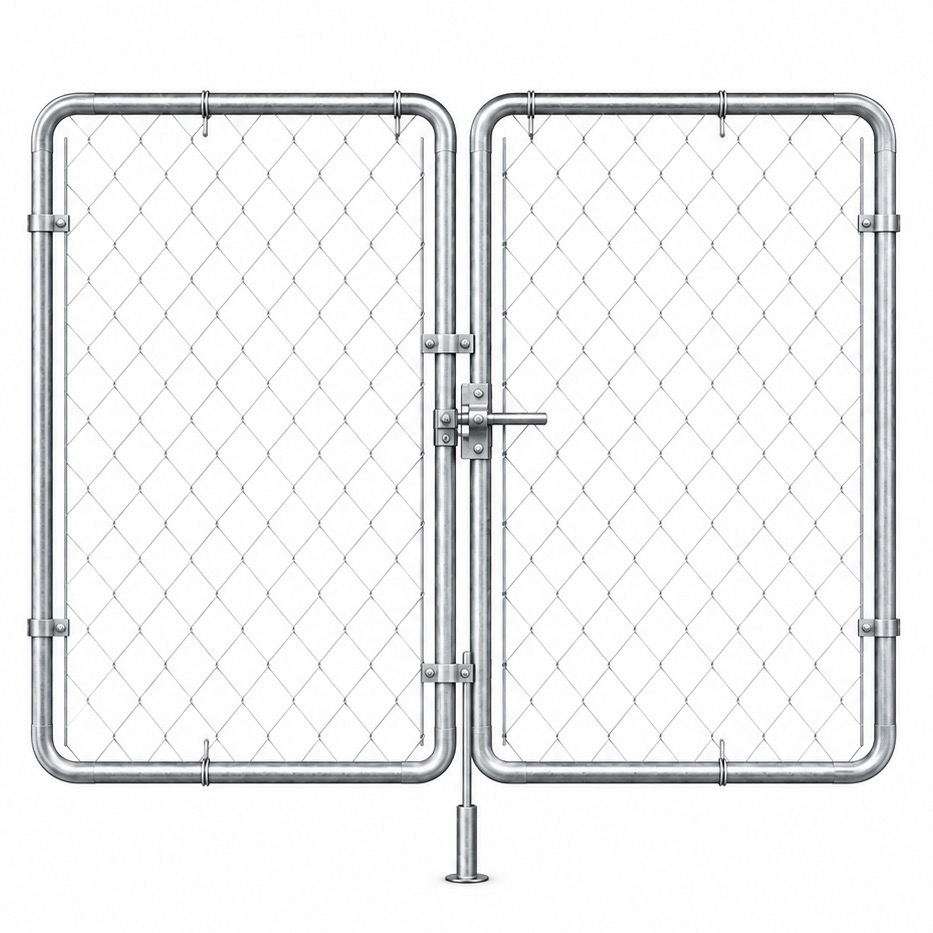

Drive Gate
See items 1, 2, and 3 above for gate fittings requirements.
